Maizorb & Walnut Shell
Vibratory equipment has become an essential tool in various industries for drying and polishing processes. Its effectiveness significantly relies on the choice of drying and polishing media used. Among the wide range of options available, Maizorb and walnut shell stand out as superior choices due to their unique properties and diverse applications.

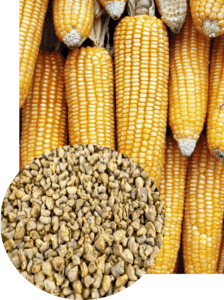

Maizorb: A Sustainable Drying and Polishing Solution
Maizorb, derived from natural corn cobs, is an eco-friendly and biodegradable drying media that offers exceptional performance. Its high absorbency ensures rapid and efficient moisture removal from various components, making it ideal for drying applications in industries like pharmaceuticals, electronics, and food processing.

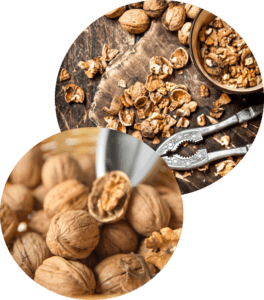

Walnut Shell: A Versatile Media for Polishing and Cleaning
Walnut shell, the husks of walnuts, is a widely used polishing and cleaning media known for its versatility and effectiveness. Its natural hardness and smooth texture make it ideal for polishing a wide range of materials, including metals, plastics, and jewellery.
Key Benefits of Maizorb:
- Exceptional absorbency: Maizorb can absorb up to four times its weight in moisture, ensuring quick and thorough drying.
- Sustainable and biodegradable: Derived from natural corn cobs, Maizorb is an environmentally friendly alternative to synthetic drying media.
- Gentle and non-abrasive: Maizorb's soft texture prevents damage to delicate components during the drying process.
- Reusable and cost-effective: Maizorb can be reused multiple times, making it a cost-effective drying solution.
Key Benefits of Walnut Shell
- Versatility: Walnut shell can be used for both polishing and cleaning applications, making it a versatile media choice.
- Gentle and non-abrasive: Walnut shell's hardness is gentle enough to polish delicate surfaces without causing damage.
- Adding a paste to the walnut can aid in improving the surface finish on some components.
- Biodegradable and environmentally friendly: Walnut shell is a natural and biodegradable media, making it an eco-friendly choice.
Applications of Maizorb and Walnut Shell in Vibratory Equipment
Maizorb and walnut shell are widely used in vibratory equipment for various applications, including:
- Drying: Maizorb's exceptional absorbency makes it ideal for drying pharmaceutical, metallic, and plastic components.
- Polishing: Walnut shell is frequently used for polishing metals, plastics, jewellery, and other materials to achieve a high-quality finish.
- Cleaning: Walnut shell's gentle abrasiveness effectively removes surface contaminants and debris from various components.
| WALNUT SHELL | PASS | RETAINED |
|---|---|---|
| GN 7 VERY COARSE | 4.50MM | 2.50MM |
| GN 8 VERY COARSE | 4.00MM | 2.50MM |
| GN 12 COARSE | 1.70MM | 1.30MM |
| GN 16 MEDIUM | 1.30MM | 0.80MM |
| GN 20 FINE | 1.00MM | 0.45MM |
| GN 30 VERY FINE | 0.80MM | 0.45MM |
| GN 80 VERY FINE | 0.45MM | 0.20MM |
| MAIZORB | PASS | RETAINED |
|---|---|---|
| GM 6 VERY COARSE | 5.00MM | 3.00MM |
| GM 12 COARSE | 2.00MM | 1.50MM |
| GM 16 MEDIUM | 1.50MM | 1.10MM |
| GM 20 FINE | 1.10MM | 0.75MM |
| GM 30 VERY FINE | 0.75MM | 0.60MM |
