Paper Band Filter for Vibratory Finishing Machines

Paper band filters are a type of filtration system that is specifically designed to remove contaminants from the effluent discharged from vibratory finishing machines. They are manufactured in various sizes to suit a corresponding discharge rate, and they can be made from either carbon or stainless steel.

How it works:

The paper band filter works by continuously trapping contaminants on a filter paper. The filter paper is supported by a chain mesh belt, and it is automatically indexed when the solid content level rises to a certain point. This allows for continuous filtration without the need for manual intervention.

Benefits:

Paper band filters offer a number of benefits, including:

Excellent filtration efficiency

Paper band filters can remove contaminants down to an exceptionally fine level, typically 10-50 microns.

Continuous filtration

Paper band filters can operate continuously without the need for manual intervention.

Compact
design

Paper band filters are relatively compact, which makes them ideal for use in tight spaces.

Durable
construction

Paper band filters are made from high-quality materials, making them durable and reliable.

Applications:

Metalworking

Model LPM PBMF / PBF 50 PBMF / PBF 65 PBMF / PBF 100 PBMF / PBF 150 PBMF / PBF 200 PBMF / PBF 300 PBMF / PBF 400
LT 1300 1400 1800 1800 2200 2500 2200
W 550 800 800 1000 1000 1100 1500

 Paper band filters are used to remove metal chips and other contaminants from the effluent discharged from grinding machines and other metalworking equipment.

Plastics

Paper band filters are used to remove plastic shavings and other contaminants from the effluent discharged from injection moulding machines and other plastics processing equipment.

Foundry

Paper band filters are used to remove sand and other contaminants from the effluent discharged from casting machines and other foundry equipment.

Full Recirculating Systems

Process Water Recycling systems enable the treatment and reuse of wastewater generated in the process from single machine to multiple lines with different capacities. With high-speed centrifuge and gradual treatment, wastewater is purified from particles and unwanted substances and recycled to the system.

Benefits:

  • Significant reduction in water consumption
  • Reduced chemical usage.
  • Environmental protection by preventing pollution.
  • Recycling of valuable ores when processing precious stones, gold, or jewellery

The system works in neutral waters (pH between 6.5-9.5).

Processes performed in the system:

  • Flocculation
  • Filtration
  • Defoaming

Filter Rolls

Filter rolls are available in a variety of micron ratings, including 10, 20, 45, and 50 microns. The micron rating of the filter roll determines the size of the contaminants that can be removed, and als the lower the micron, the longer the saturation period.

Contact us today to learn more about paper band filters and how they can help you to improve your wastewater treatment process.

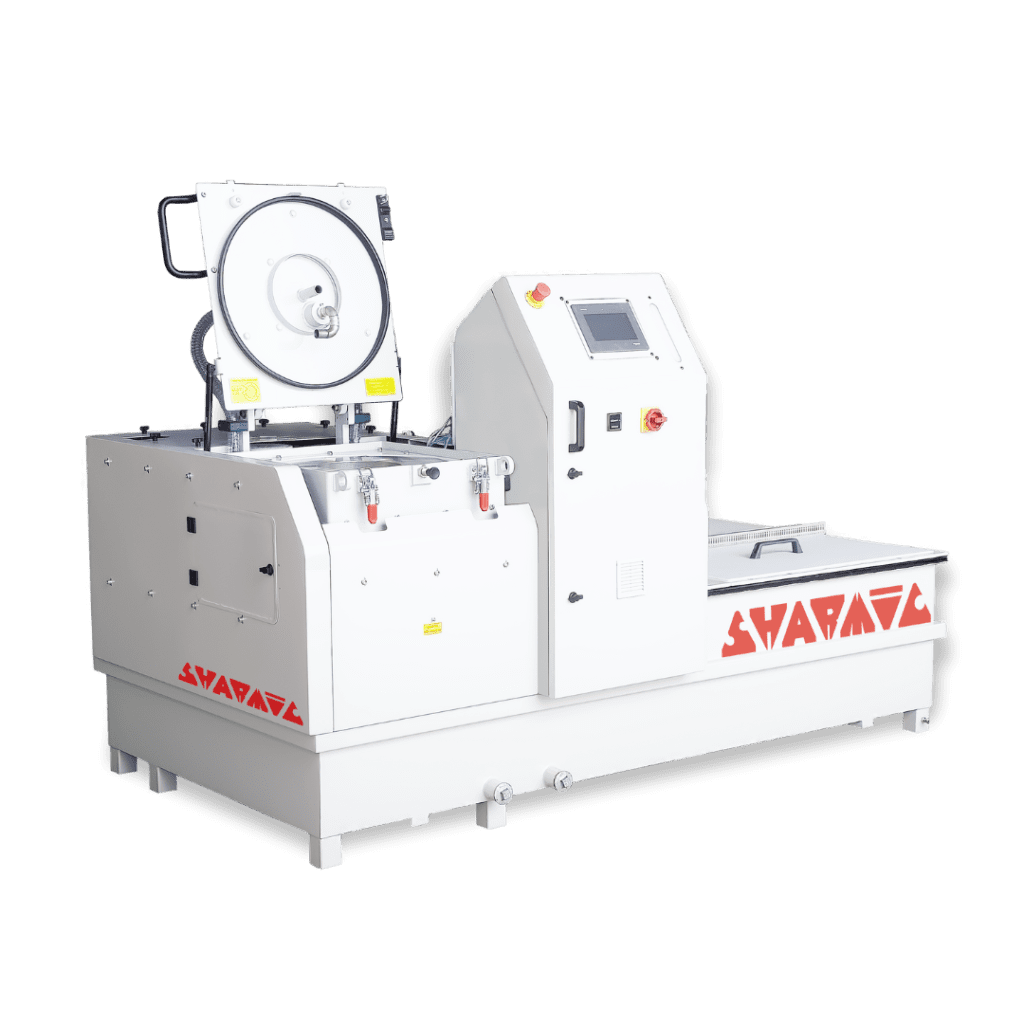

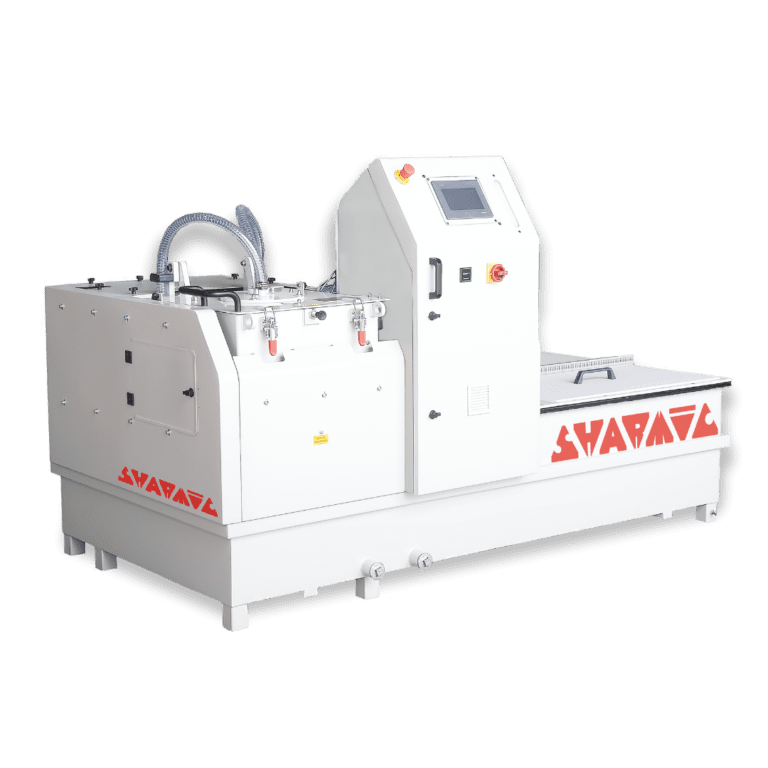

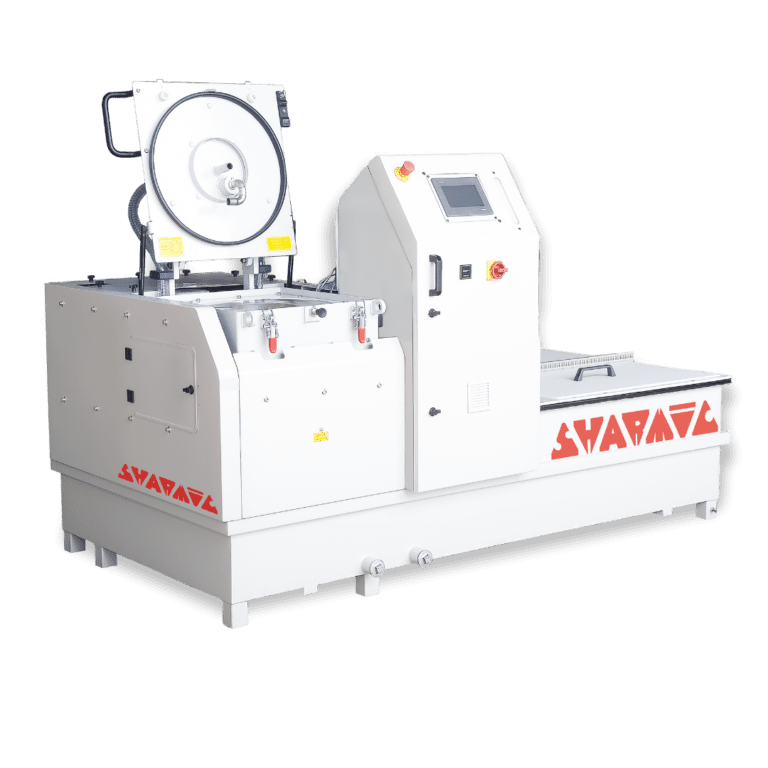

Machine Type Unit ARS25 B0 ARS25 B60 ARS25 MN500 ARS25 MN1000 ARS140 B1000
Capacity Liter/Hour 300 300 300 300 1200
Clean Water Tank Capacity Liter - 30 270 556 482
Waste Water Tank Capacity Liter - 30 135 260 338
Total Tank Capacity Liter - 120 405 816 820
Sludge Container Capacity kg 2,5 2,5 2,5 2,5 22
Max. Clean Water Outlet Pressure bar 0,5 0,5 0,5 0,5 0,3
Separation Factor g 1800 1800 1800 1800 2010
Centrifugal Speed rpm 4100 4100 4100 4100 2750
Motor Power kW 1,5 1,5 1,5 1,5 5
Total Power kW 1,5 2 1,5 1,5 5,5
Measurements mm 702x413x780 680x800x800 1560x760x1392 2060x1080x1392 2120x1275x1695
Total Weight kg 115 160 290 335 620
Control Unit - Semiautomatic Semiautomatic Semiautomatic Semiautomatic Semiautomatic
Chemical Dosing - - Optional Standard Standard Standard
Filtering - Centrifugal Filter Centrifugal Filter Centrifugal Filter Centrifugal Filter Centrifugal Filter
Defoaming - Optional Optional Optional Optional Optional
Water Recycling Rate % 95 95 95 95 95
